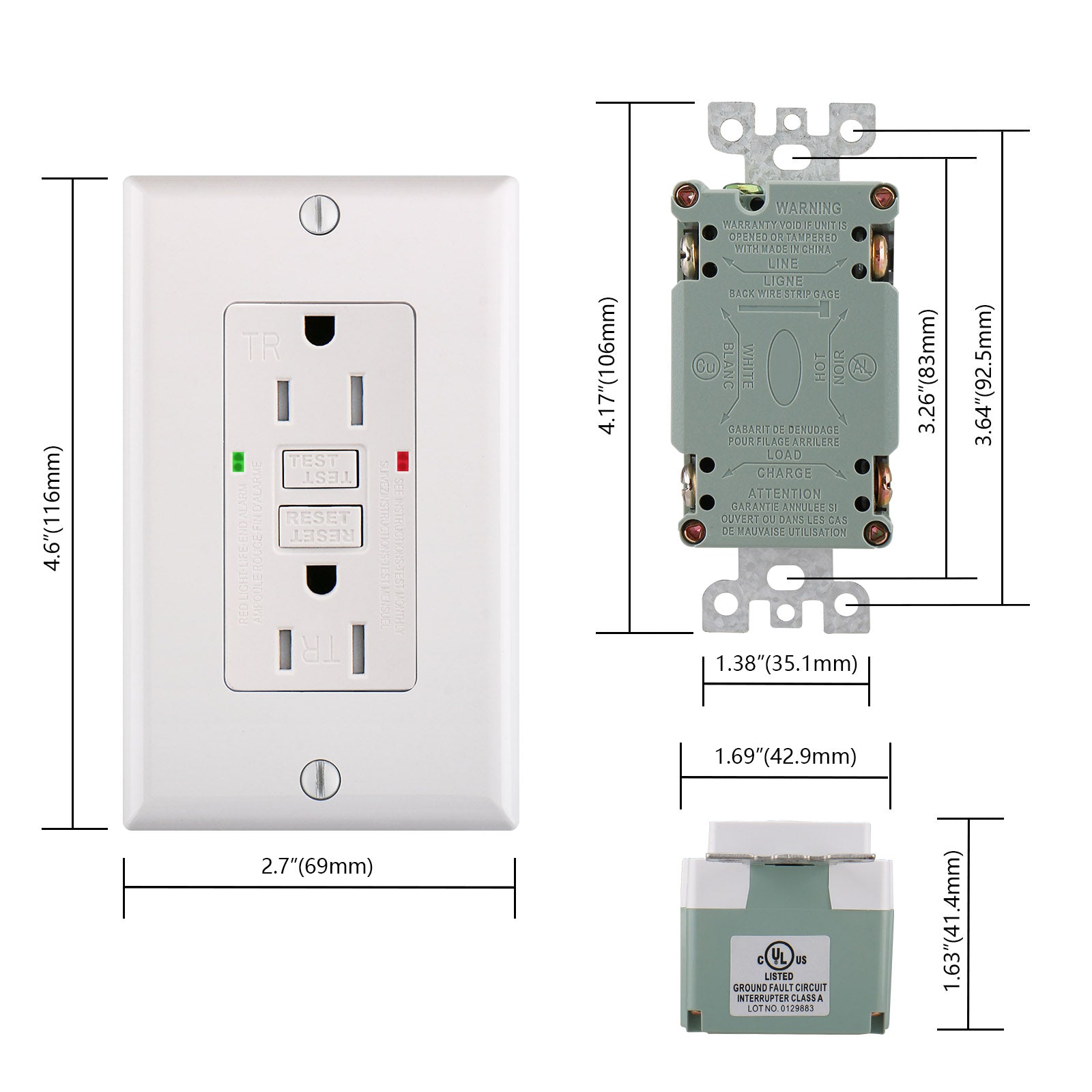

Wengart GFCI Outlet,AC125V 15Amp Tamper Resistant GFCI Receptacle, UL Listed

GFCI is a high-sensitivity, fast-response leakage protection device, which can quickly cut off the circuit and isolate the fault point when a dangerous ground fault leakage occurs, so as to avoid the occurrence of electrical accidents and ensure personal safety. The working principle of GFCI is that when there is equipment leakage or human body gets an electric shock, part of the current flows into the ground, and when the current flowing through the live wire and the neutral wire is not equal (the normal situation is equal), the GFCI monitors the current difference between the live wire and the neutral wire. Once the difference is greater than 6mA, the power supply can be cut off at the moment of 0.025 seconds, so as to ensure the safety of people and property. Widely used in homes, offices, hospitals, schools, hotels, factories and other outdoor venues.
Specification:
<li>Grounding: Standard Grounding</li>
<li>Rated Voltage: 120V</li>
<li>Rated Current: 15A/20A</li>
<li>Application: Residential/General-Purpose</li>
<li>Electrical Characteristics: AC120V/15A/20A</li>
<li>Color:White</li>
<li>Unloaded plug≥5000Sec Loop detection with automatic monitoring function</li>
<li>Meet the standard:UL,CUL</li>
<li>Housing material flame retardant grades</li>
<li>Tripping threshold:5mA Tripping time<25ms</li>
<li>Surge current:6000V/3000A 6000V/10KA</li>
<li>Electric strength:Pressure resistance1500V 50Hz Duration 1Min</li>
<li>Insulation resistance:>50MΩ(DC500V)</li>
<li>Short-circuit current:10KA </li>
<li>Insert and Draw Frequency>10000 times</li>
<li>Temperature,humidity:-35℃ ~ +66℃; 20% ~ 90%</li>
<li>Storage Temperature,Humidity: -20℃ ~ +85℃; 10% ~ 95%RH</li>

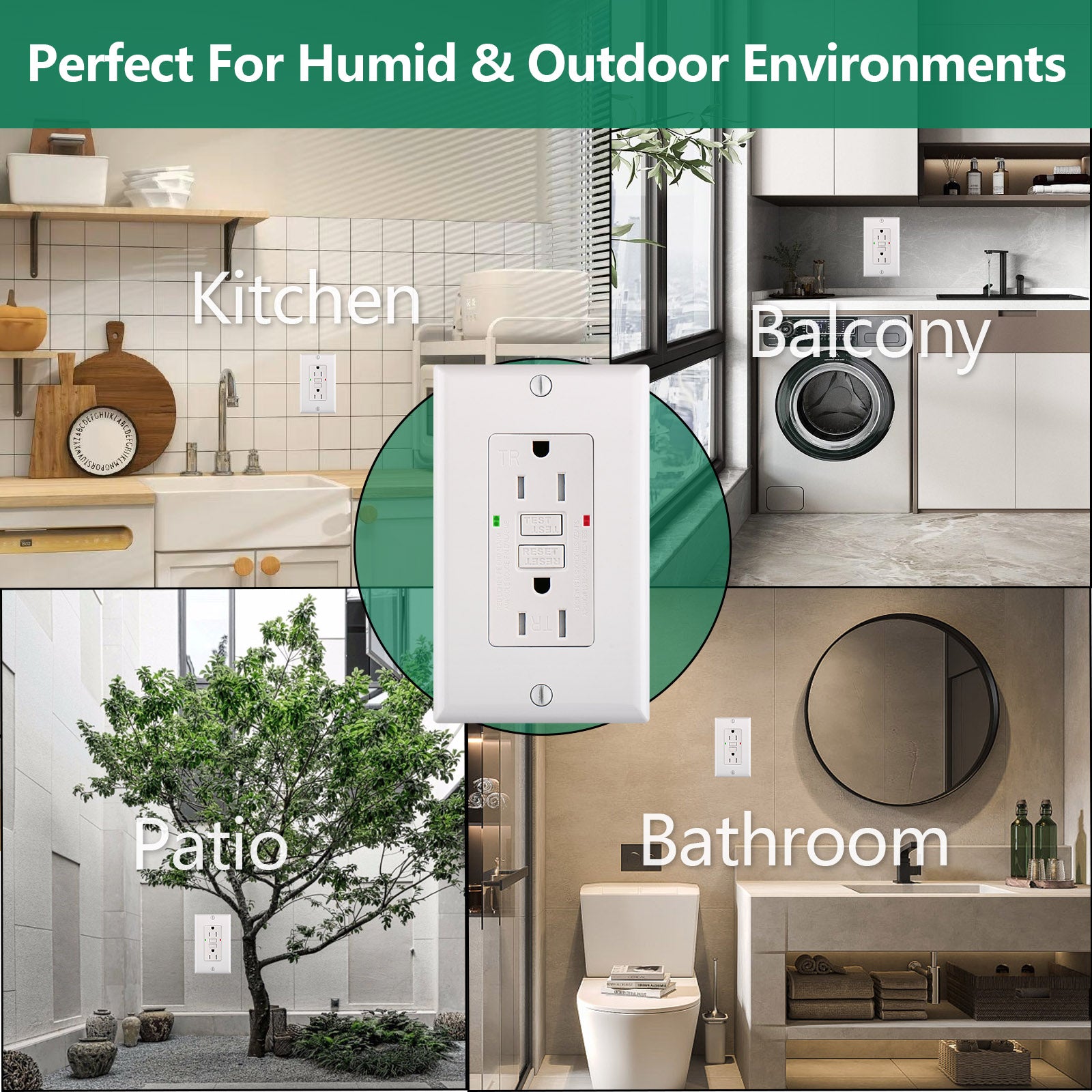

1. This GFCI outlet can continuously protect against ground faults, prevent personal injury and electrical fire risks caused by ground faults, and is a safe power outlet device for kitchens, bathrooms, schools, commercial places, garages, etc.
2. This GFCI duplex socket can detect whether there is a problem with the circuit without complicated operations. You can automatically test the circuit every time you press the reset button (if the GFCI circuit is not working properly, the GFCI will not reset.
3. This GFCI socket has a tamper-proof socket function, which prevents young children from inserting unwanted items into the socket unless both prongs of the plug are inserted at the same time

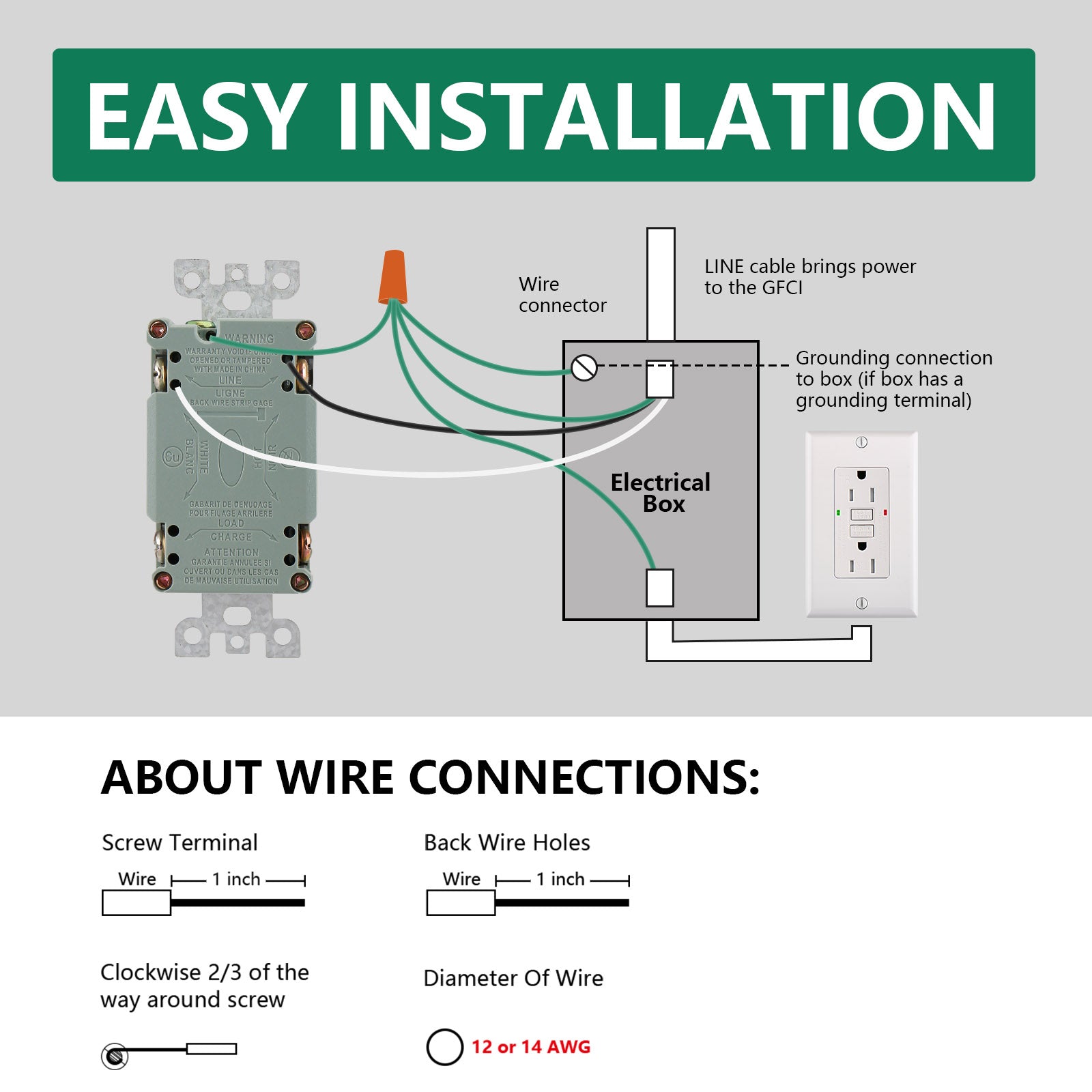

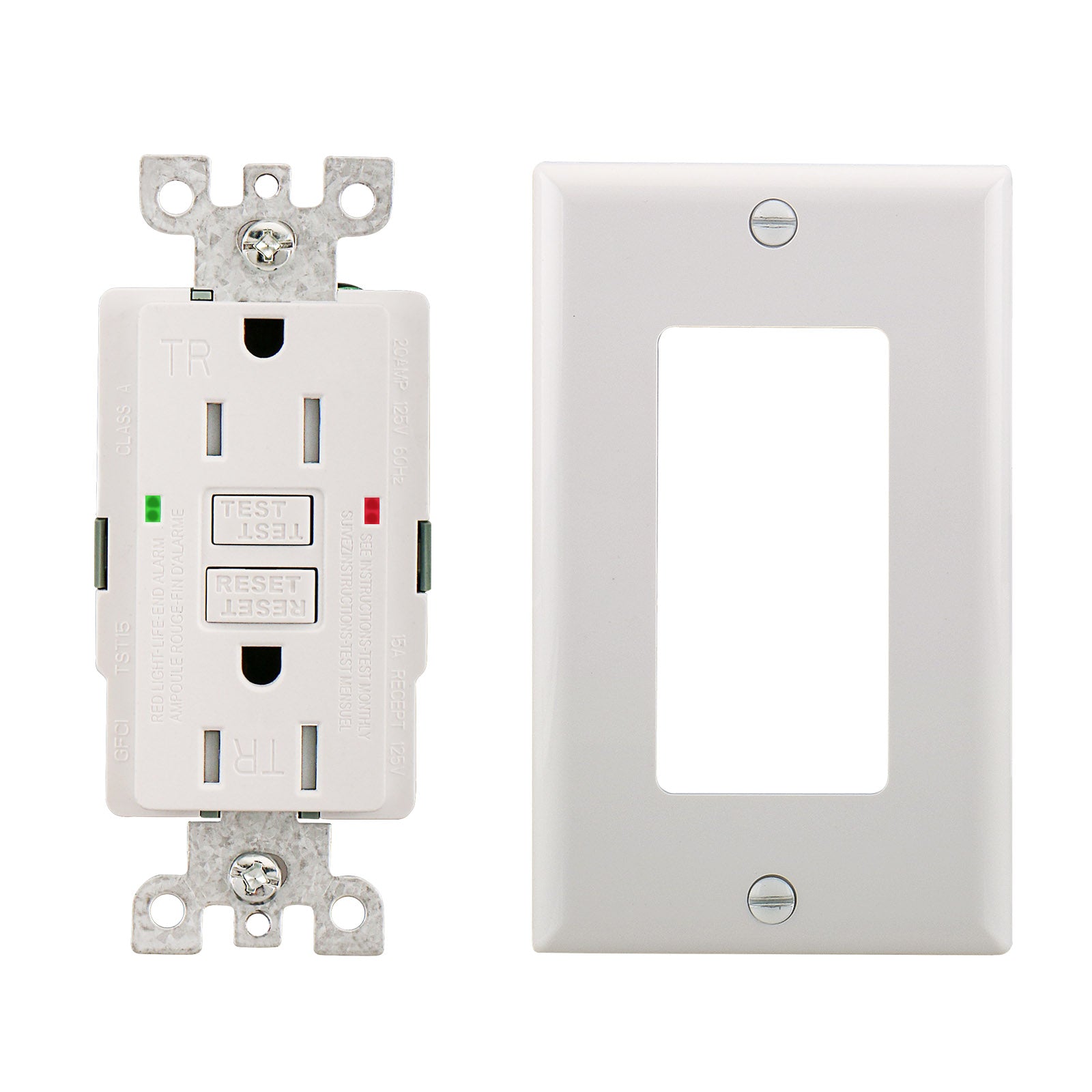

4, This GFCI receptacle is suitable for 12 or 14AWG wires of side wire and back wire, follow our detailed product installation instructions, can replace the existing receptacle in as little as 10 minutes, compatible with all electrical boxes, decorative equipment and wall plates

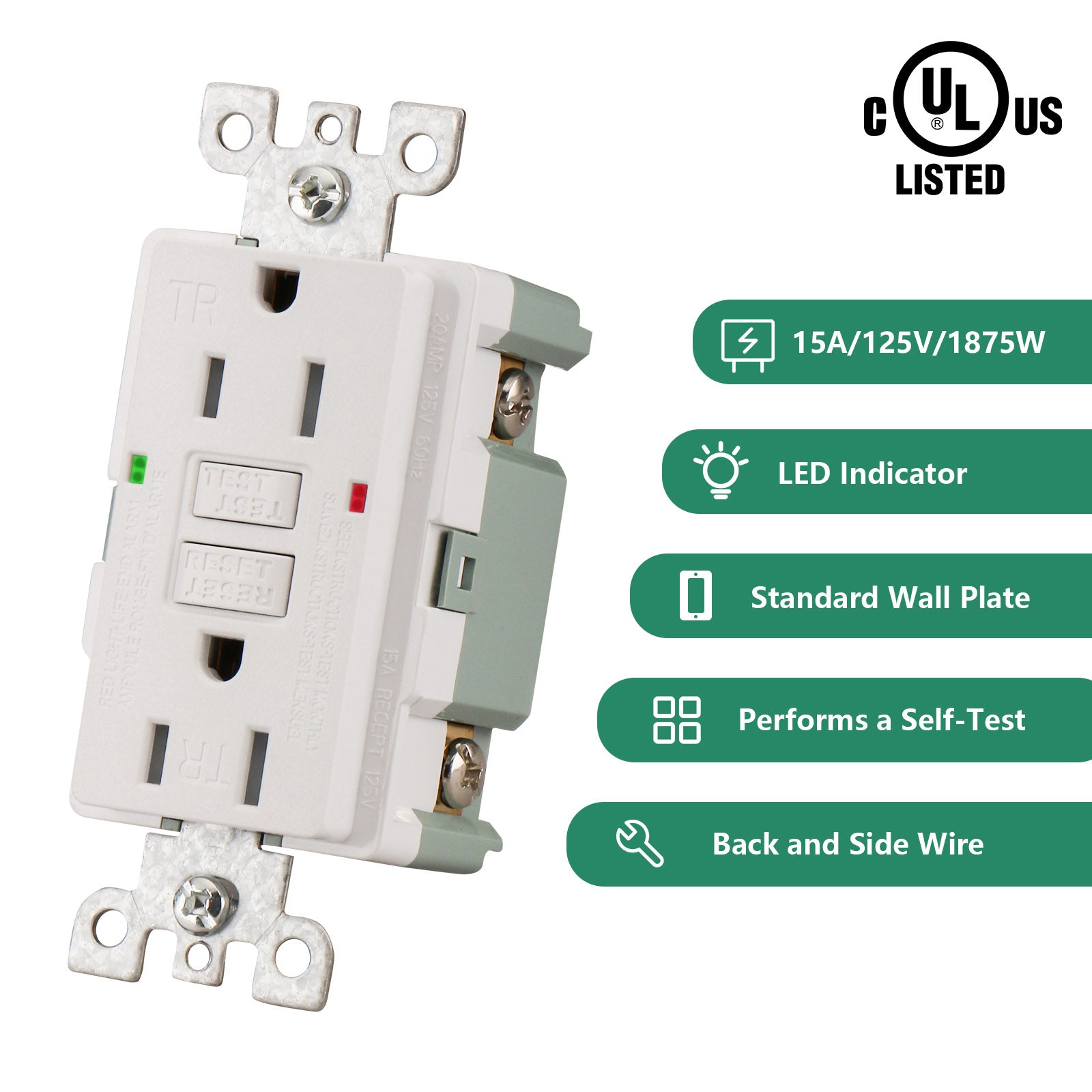

5. This GFCI receptacle duplex receptacle with test and reset button and LED indicator complies with UL standard 943A class GFCI and 498 receptacle, using high-quality impact-resistant thermoplastic material and reasonable structural design, with excellent strength and durability
